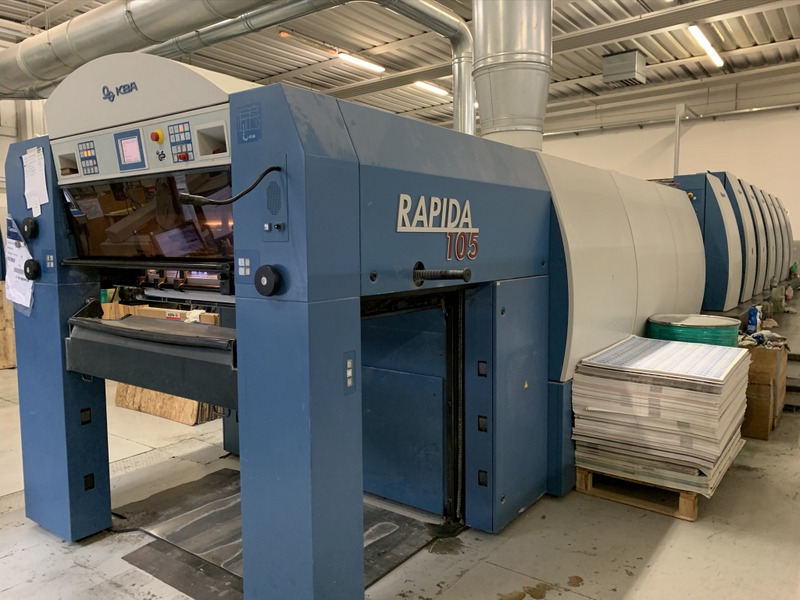

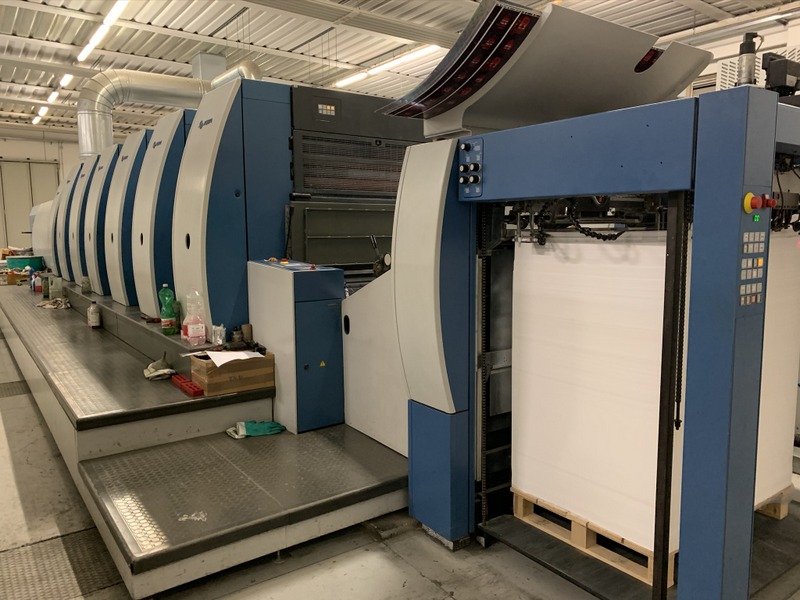

KBA RAPIDA 105-6 + L ALV2 CX UV FAPC SIS ZF HIBRYD

Year: 2006

111 mill imp

Max sheet size: 740 x 1.050 mm
Min sheet size: 350 x 500 mm
Max print size: 730 x 1.040 mm
Plate size: 795 x 1.050 mm
Thickness: 0.04 - 0.06 with CX 1.2 mm
Output: 16.000 sheets per hour

DATA SHEET

•         Software update to the ZF team for transparent plastic printing

·  Drivetronic feeder

·  DriveTronic Sidelay SIS

·  CX package up to 1.2 mm thickness

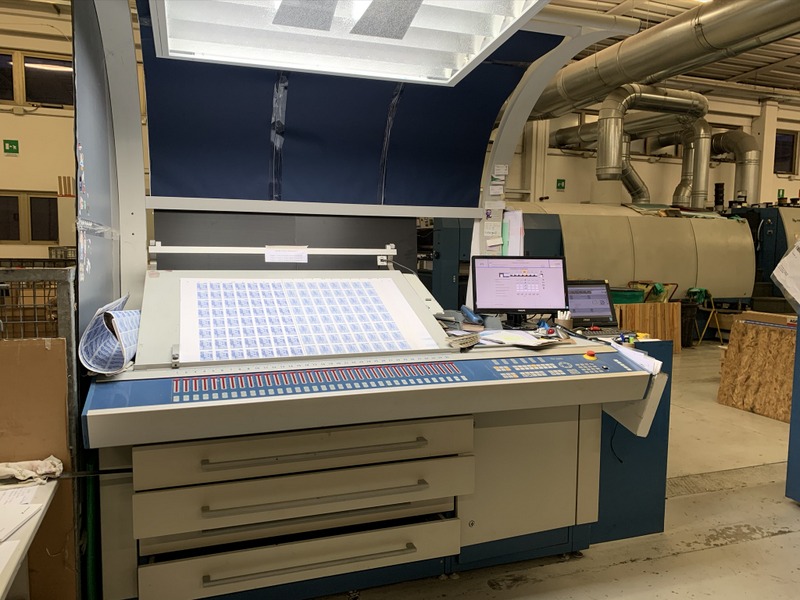

·  ErgoTronic console with ColorTronic ink metering

·  FAPC fully-automatic plate change

·  KBA Non-Stop-Feeder

·  Preset

·  Kersten anti-static device, high-performance version

·  Dust removal at feeder

·  Cardboard equipment with mechanical guide elements (> 600 g/m2);

·  Sheet travel control

·  Inking unit temperature control

·  Elettra washing device for blanket- and impression cylinder & roller washing

·  Coating unit (L) Harris & Bruno chamered doctor blade

·  Harris & Bruno coating supply and cleaning system

·  KBA VariDry IR / Hot-air end dryer / UV in delivery and extended delivery

·  Extended delivery ALV2 = 2400 mm

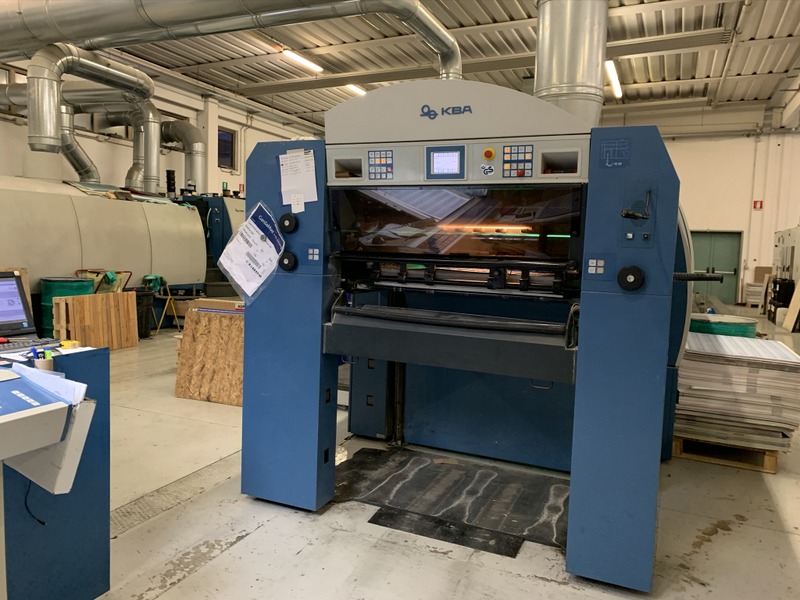

·  KBA Non-Stop-Delivery, rollomatic

·  Weko AP 262 Ionojet powder spray

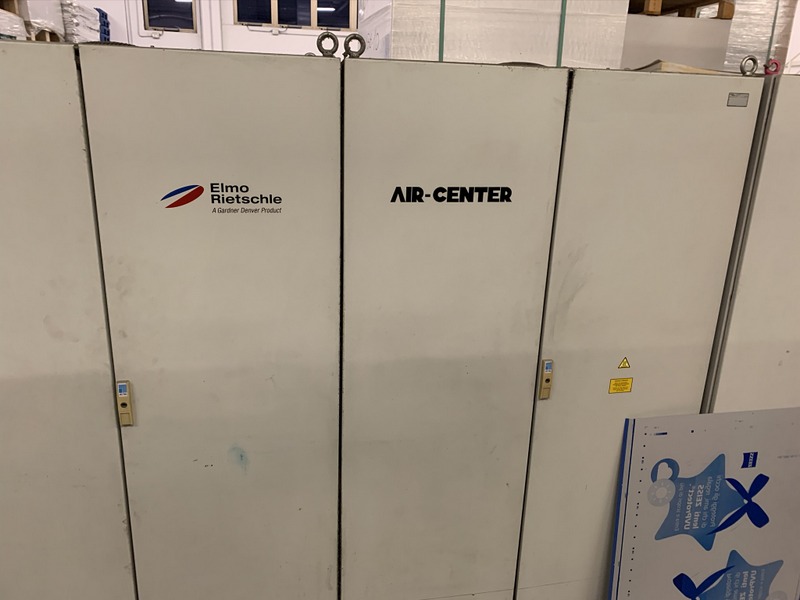

·  Becker air-cabinet

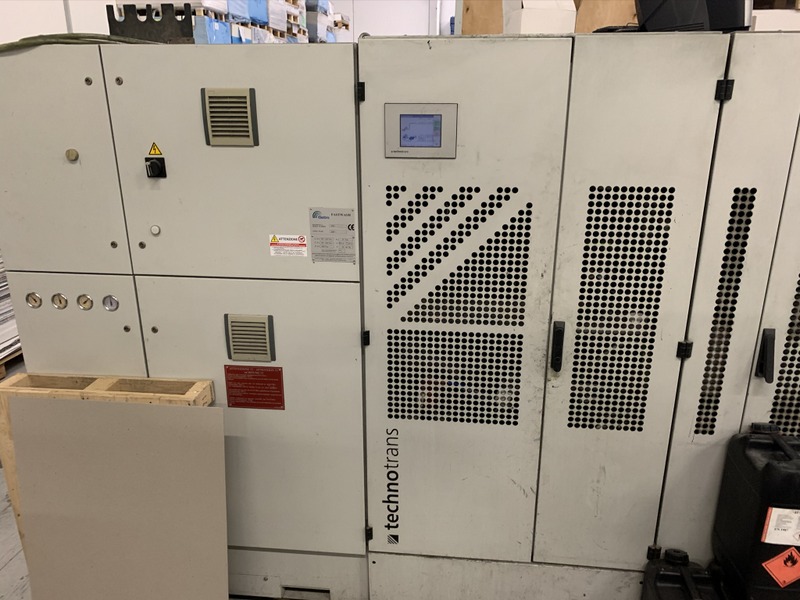

·  Technotrans Beta.c High-Tech combi cooling device ,Ph value, conductivity ,management from the pulpit, Alcoprint

·  Technotrans Beta.f filter unit

·  Grapho-Metronic register

·  Delta Drive for dampening group

·  Pneumatic punching machine for printing plates and paint

·  Deposit sheets at the feeder

·  Ultrasonic double sheet control

·  Capacitive double sheet control

·  Intercom system

·  ACR (automatic register)

·  ACS (Air Cleaning System)

·  Hybrid printing package

·  Cip Link online

·  Package for printing with hybrid inks consisting of:
double paint circulation circuit for the painting tower and UV inks

·  Varidry UV in deliverey 3 Lamps

·  3x Varidry UV intermediate drying ovens

·  3x print unit settings for the UV intermediate oven

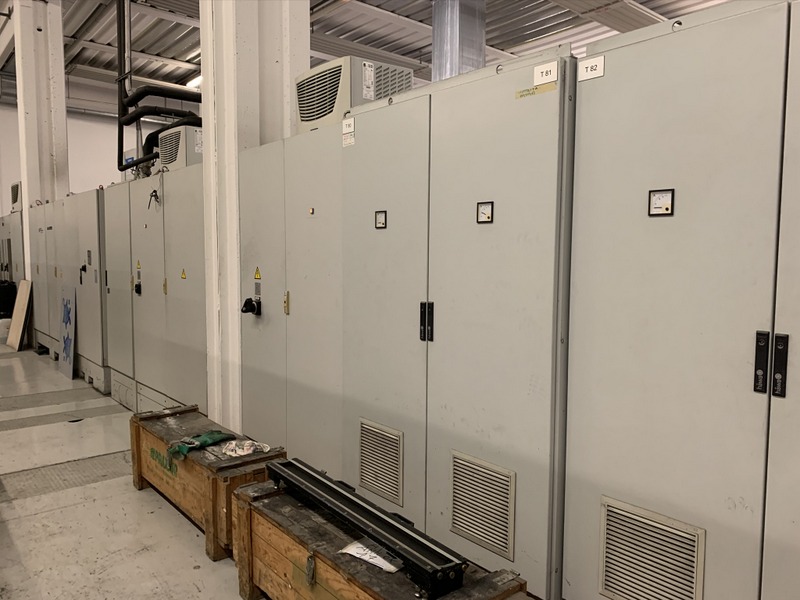

·  Electrical cabinet for the universal intermediate oven UV exchange

·  Double UV washing circuit

·  Additional roller bridge for 6 printing units

·  Wetting differential actuation for 6 groups

·  Package for plastic printing

·  Machine running – Located in Italy.

·  Available in 02/03-2020
